docker 部署prometheus 与grafana

一、简介

prometheus 核心是一个单独的二进制方式文件 pull模型内置的时间序列数据库（TSDB）强大的查询语言 PromQL 可视化开放化

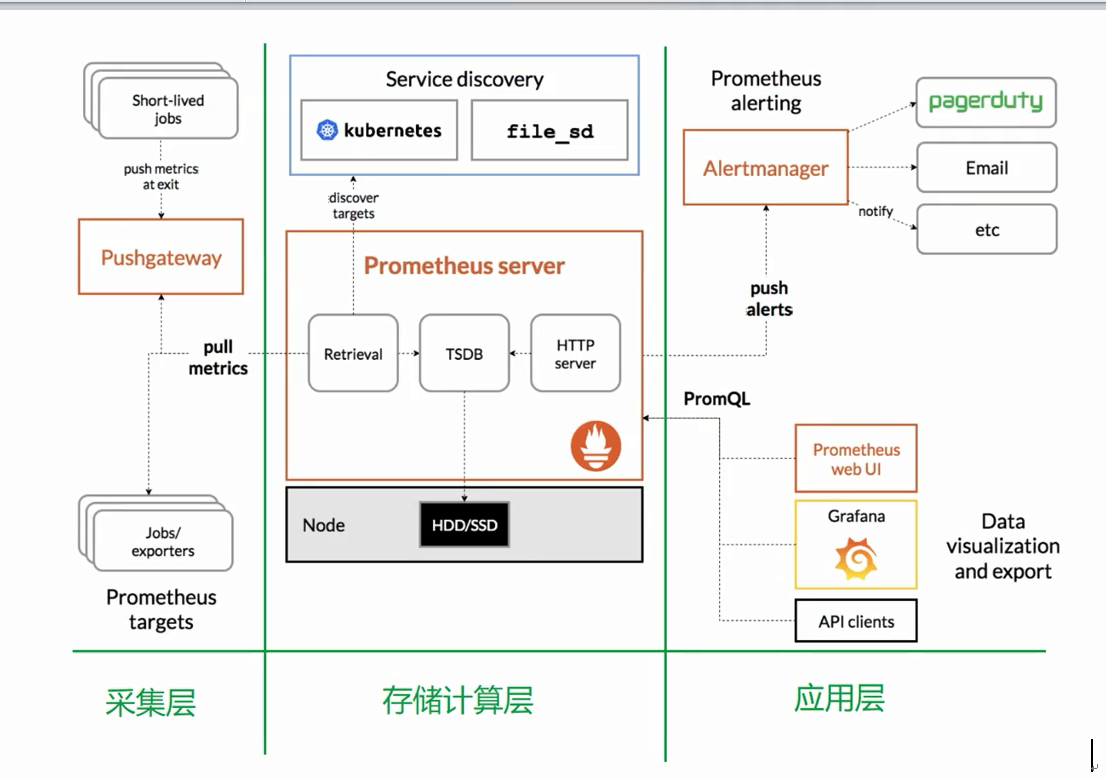

1、存储计算层

Prometheus Server ，里面包含了存储引擎和计算引擎

Retrieval 组件为取数组件，它会主动从Pushgateway 或Exporter 拉取数据

Service discovery 可以动态发现要监控的目标

TSDB ，数据核心存储和查询

HTTP server ，对外提供HTTP 服务

2、采集层

采集层分为两类，一类是生命周期较短的作业，还有一类是生命周期较长的作业

短作业：直接通过API ,在退出时间指标推送给Pushgateway

长作业： Retrieval 组件直接从Job 或者Exporter 拉取数据

3、应用层

应用层主要分为两种，一种是AlertManager，另一种是数据可视化

AlertManager 对接Pagerduty ,是一套付费的监控报警系统，短信，电话，Email 发邮件

数据可视化 Prometheus build-in WebUI Grafana 其他基于API开发的客户端

二、实操利用docker 安装prometheus 、granfana

1.统一环境配置

下载docker 并关闭防火墙和selinux

2.下载相关镜像

docker pull prom/prometheus docker pull prom/alertmanager docker pull grafana/grafana

3.启动相关组件

prometheus-webhook-dingtalk 启动

docker run -d -p 8060:8060 -v /data/prom/config.yml:/etc/prometheus-webhook-dingtalk/config.yml --name alertdingtalk timonwong/prometheus-webhook-dingtalk

alertmanager 启动

docker run -d -p 9093:9093 -p 9094:9094 -v /data/prom/alertmanager.yml:/etc/alertmanager/alertmanager.yml --name alertmanager prom/alertmanager

prometheus 启动

docker run -d -p 9090:9090 \
-v /data/prom/prometheus.yml:/etc/prometheus/prometheus.yml \
-v /data/prom/alert-rules.yml:/etc/prometheus/alert-rules.yml \
-v /data/prom/data:/prometheus --name prometheus prom/prometheus:latest

grafana启动

docker run -d -p 3000:3000 -v /data/prom/grafana:/var/lib/grafana --name=grafana grafana/grafana:latest

相关配置yml文件参考如下：

alertmanager.yml

global:
  resolve_timeout: 5m
  smtp_smarthost: 'smtp.exmail.qq.com:465'                #邮箱smtp服务器代理，启用SSL发信, 端口一般是465
  smtp_from: 'test@qq.com'              #发送邮箱名称
  smtp_auth_username: 'test@qq.com'              #邮箱名称
  smtp_auth_password: 'passwd'                #邮箱密码或授权码
  smtp_require_tls: false
route:
  receiver: 'default-receiver'    # 所有不匹配以下子路由的告警都将保留在根节点，并发送到“default-receiver”
  group_wait: 30s                 # 为一个组发送通知的初始等待时间，默认30s
  group_interval: 5m              # 在发送新告警前的等待时间。通常5m或以上
  repeat_interval: 1h             # 发送重复告警的周期。如果已经发送了通知，再次发送之前需要等待多长时间。
  group_by: [alertname]  # 报警分组依据

  routes:- receiver: 'bigdata-pager'    # 所有带有team=bigdata标签的告警都与此子路由匹配，可以自己在alert-rules.yml中的labels添加即可
    group_wait: 10s
    match:
      team: bigdata
receivers:                        # 定义接收者，将告警发送给谁
- name: 'default-receiver'
  email_configs:
  - to: 'xx@qq.com,xx@qq.com'

- name: 'bigdata-pager'
  email_configs:
  - to: 'xxx@qq.com,xx@qq.com'

prometheus.yml

global:
  scrape_interval:     15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
  evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
alerting:       #指定alertmanager报警组件地址
  alertmanagers:
  - static_configs:
    - targets: [ '192.168.188.2:9093']

rule_files:  #指定报警规则文件
  - "*rules.yml"

scrape_configs:
  - job_name: 'prometheus'
    static_configs:
      - targets: ['192.168.188.2:9090']

  - job_name: 'node'
    static_configs:
      - targets: ['192.168.188.3:9100']

  - job_name: 'alertmanager'
    static_configs:
      - targets: [ '192.168.188.2:9093']

alert-rules.yml

groups:
- name: 主机状态-监控告警
  rules:
  - alert: 主机状态
    expr: up *on(instance)group_left(nodename)(node_uname_info) == 0
    for: 5m
    labels:
      level: waring
    annotations:
      summary: "{{$labels.instance}}:服务器宕机"
      description: "{{$labels.instance}}({{$labels.nodename}}):服务器延时超过3分钟"
  - alert: 主机cpu使用情况
    expr: 100-avg(irate(node_cpu_seconds_total{mode="idle"}[5m])) by(instance) *100  *on(instance)group_left(nodename)(node_uname_info) > 85
    for: 3m
    labels:
      level: waring
    annotations:
      summary: "{{ $labels.instance }}cpu使用率过高"
      description: "{{ $labels.instance }}({{$labels.nodename}}):cpu使用率超过85%(当前使用率: {{ $value }}%)"
  - alert: 主机内存使用情况
    expr: (node_memory_MemTotal_bytes - (node_memory_MemFree_bytes + node_memory_Buffers_bytes + node_memory_Cached_bytes)) / node_memory_MemTotal_bytes* 100 *on(instance)group_left(nodename)(node_uname_info) > 90
    for: 3m
    labels:
      level: waring
    annotations:
      summary: "{{$labels.instance}}: High Memory usage detected"
      description: "{{$labels.instance}}({{$labels.nodename}}): 内存使用率超过 90% (当前使用率: {{ $value }}%)"
  - alert: 主机磁盘使用情况
    expr: 100-(node_filesystem_free_bytes{fstype=~"ext4|xfs"}/node_filesystem_size_bytes {fstype=~"ext4|xfs"})*100 *on(instance)group_left(nodename)(node_uname_info)  > 85
    for: 3m
    labels:
      level: waring
    annotations:
      summary: "{{ $labels.instance }} 磁盘空间使用率过高！"
      description: "{{ $labels.instance }}({{$labels.nodename}}): 磁盘空间使用大于85%(当前使用率: {{$value}}%)"
  - alert: 磁盘IO性能
    expr: 100-(avg(irate(node_disk_io_time_seconds_total[1m])) by(instance) *100) *on(instance)group_left(nodename)(node_uname_info)   < 60
    for: 3m
    labels:
      level: waring
    annotations:
      summary: "{{ $labels.instance }} 流入磁盘IO使用率过高！"
      description: "{{ $labels.instance }}({{$labels.nodename}}): 流入磁盘IO大于60%(当前使用率: {{$value}}%)"
  - alert: TCP会话
    expr: node_netstat_Tcp_CurrEstab *on(instance)group_left(nodename)(node_uname_info)  > 10000
    for: 3m
    labels:
      level: waring
    annotations:
      summary: "{{ $labels.instance }} TCP_ESTABLISHED过高！"
      description: "{{ $labels.instance }}({{$labels.nodename}}): TCP_ESTABLISHED大于1000%(当前使用率: {{$value}}%)"
  - alert: inside网络
    expr: ((sum(rate (node_network_receive_bytes_total{device!~'tap.*|veth.*|br.*|docker.*|virbr*|lo*'}[5m])) by (instance)) / 100) *on(instance)group_left(nodename)(node_uname_info)   > 819200
    for: 3m
    labels:
      level: waring
    annotations:
      summary: "{{ $labels.instance }} 流入网络带宽过高！"
      description: "{{ $labels.instance }}({{$labels.nodename}}): 流入网络带宽持续2分钟高于800M(当前使用: {{$value}})"
  - alert: outside网络
    expr: ((sum(rate (node_network_transmit_bytes_total{device!~'tap.*|veth.*|br.*|docker.*|virbr*|lo*'}[5m])) by (instance)) / 100 ) *on(instance)group_left(nodename)(node_uname_info) > 819200
    for: 3m
    labels:
      level: waring
    annotations:
      summary: "{{ $labels.instance }} 流出网络带宽过高！"
      description: "{{ $labels.instance }}({{$labels.nodename}}): 流出网络带宽持续2分钟高于800M(当前使用: {{$value}})"

  - alert: node_exporter 监控
    expr: up{job="consul-prometheus"} == 0
    for: 15s
    labels:
      level: waring
    annotations:
      summary: "{{ $labels.instance }}  node_exporter 已停止运行超过 15s！"
      description: "{{ $labels.instance }}({{$labels.job}}) 已停止运行超过 15s！"

三、相关node-exporter的安装

1.node-exporter 的安装

Node-exporter需要监控实际的主机硬件信息，不推荐用docker来安装，建议通过二进制包来安装

docker安装

docker run -d -p 9100:9100 --name node-exporter prom/node-exporter:latest
docker run -d -p 9100:9100 --net=host -v "/proc:/host/proc:ro" -v "/sys:/host/sys:ro" -v "/:/rootfs:ro" --name node-exporter prom/node-exporter:latest

二进制包安装

客户端下载地址：https://github.com/prometheus/node_exporter/releases

同样找到Linux-amd64这个版本，下载解压即可

#下载
wget https://github.com/prometheus/node_exporter/releases/download/v1.5.0/node_exporter-1.5.0.linux-amd64.tar.gz
#解压
tar -zxvf node_exporter-1.5.0.linux-amd64.tar.gz
#重命名
mv node_exporter-1.5.0.linux-amd64 node_exporter

启动方式：
#不保存日志
nohup ./node_exporter >/dev/null 2>&1 &
#保存日志到/var/log/node_exporter.log
nohup ./node_exporter >/var/log/node_exporter.log 2>&1 &



使用systemd方式启动

 cat >/usr/lib/systemd/system/node_exporter.service  <<EOF
[Unit]
Description=node_exporter
[Service]
ExecStart=/usr/local/node_exporter/node_exporter   --collector.systemd --collector.systemd.unit-include=(docker|portal|sshd).service
ExecReload=/bin/kill -HUP $MAINPID
KillMode=process
Restart=on-failure
[Install]
WantedBy=multi-user.target

EOF
---

systemctl daemon-reload

systemctl enable node_exporter.service

systemctl start node_exporter.service

2.mysqld_exporter 的安装

MySQL需要注意先在创建用于监视数据库的用户exporter

mysql> CREATE USER 'exporter'@'localhost' IDENTIFIED BY 'see_teampass' WITH MAX_USER_CONNECTIONS 5;

mysql> GRANT PROCESS, REPLICATION CLIENT, SELECT ON *.* TO 'exporter'@'localhost';

说明：使用max_user_connections参数来限制exporter用户最大连接数，避免监控引起数据库过载，需要注意的是该参数并不是MySQL/Mariadb每个版本都支持

mysql > flush privileges;

下载安装mysqld_exporter

https://github.com/prometheus/mysqld_exporter/releases

tar xvf mysqld_exporter-0.14.1.linux-amd64.tar.gz  -C /usr/local/

cd /usr/local/

mv mysqld_exporter-0.14.1.linux-amd64 mysqld_exporter

cd /usr/local/mysqld_exporter


创建连接文件
----------
cat > .my.cnf <<EOF

[client]

user=exporter

password=see_teampass

EOF

---------

使用systemd方式启动

 cat >/usr/lib/systemd/system/mysqld_exporter.service  <<EOF

[Unit]

Description=Prometheus

[Service]

ExecStart=/usr/local/mysqld_exporter/mysqld_exporter --config.my-cnf=/usr/local/mysqld_exporter/.my.cnf

Restart=on-failure

[Install]

WantedBy=multi-user.target

EOF

---------

systemctl daemon-reload

 systemctl enable mysqld_exporter

 systemctl start mysqld_exporter

3.blackbox exporter的安装

二进制安装

wget  https://github.com/prometheus/blackbox_exporter/releases/download/v0.23.0/blackbox_exporter-0.23.0.linux-amd64.tar.gz

tar -zxvf  blackbox_exporter-0.23.0.linux-amd64.tar.gz -C /usr/local

mv /usr/local/blackbox_exporter-0.23.0.linux-amd64.tar.gz   /usr/local/blackbox_exporter

配置下当前探针 cat /usr/local/blackbox_exporter/blackbox.yml 探针类型（prober）

modules:
  http_2xx:
    prober: http
  http_post_2xx:
    prober: http
    http:
      method: POST
  tcp_connect:
    prober: tcp
  pop3s_banner:
    prober: tcp
    tcp:
      query_response:
      - expect: "^+OK"
      tls: true
      tls_config:
        insecure_skip_verify: false
  grpc:
    prober: grpc
    grpc:
      tls: true
      preferred_ip_protocol: "ip4"
  grpc_plain:
    prober: grpc
    grpc:
      tls: false
      service: "service1"
  ssh_banner:
    prober: tcp
    tcp:
      query_response:
      - expect: "^SSH-2.0-"
      - send: "SSH-2.0-blackbox-ssh-check"
  irc_banner:
    prober: tcp
    tcp:
      query_response:
      - send: "NICK prober"
      - send: "USER prober prober prober :prober"
      - expect: "PING :([^ ]+)"
        send: "PONG ${1}"
      - expect: "^:[^ ]+ 001"
  icmp:
    prober: icmp
  icmp_ttl5:
    prober: icmp
    timeout: 5s
    icmp:
      ttl: 5

添加到启动项 cat /usr/lib/systemd/system/blackbox_exporter.service

[Unit]
Description=blackbox_exporter

[Service]
User=root
Type=simple
ExecStart=/usr/local/blackbox_exporter/blackbox_exporter  --config.file=/usr/local/blackbox_exporter/blackbox.yml
Restart=on-failure

检查是否正常运行

同时也可以通过访问 http://127.0.0.1:9115/probe?module=http_2xx&target=baidu.com 对baidu.com 进行探测

这里通过在URL中提供module参数指定了当前使用的探针，target参数指定探测目标，探针的探测结果通过Metrics的形式返回：

# HELP probe_dns_lookup_time_seconds Returns the time taken for probe dns lookup in seconds
# TYPE probe_dns_lookup_time_seconds gauge
probe_dns_lookup_time_seconds 0.004366919
# HELP probe_duration_seconds Returns how long the probe took to complete in seconds
# TYPE probe_duration_seconds gauge
probe_duration_seconds 0.09053371
# HELP probe_failed_due_to_regex Indicates if probe failed due to regex
# TYPE probe_failed_due_to_regex gauge
probe_failed_due_to_regex 0
# HELP probe_http_content_length Length of http content response
# TYPE probe_http_content_length gauge
probe_http_content_length 81
# HELP probe_http_duration_seconds Duration of http request by phase, summed over all redirects
# TYPE probe_http_duration_seconds gauge
probe_http_duration_seconds{phase="connect"} 0.040772637
probe_http_duration_seconds{phase="processing"} 0.04430544
probe_http_duration_seconds{phase="resolve"} 0.004366919
probe_http_duration_seconds{phase="tls"} 0
probe_http_duration_seconds{phase="transfer"} 0.00019256
# HELP probe_http_last_modified_timestamp_seconds Returns the Last-Modified HTTP response header in unixtime
# TYPE probe_http_last_modified_timestamp_seconds gauge
probe_http_last_modified_timestamp_seconds 1.26330408e+09
# HELP probe_http_redirects The number of redirects
# TYPE probe_http_redirects gauge
probe_http_redirects 0
# HELP probe_http_ssl Indicates if SSL was used for the final redirect
# TYPE probe_http_ssl gauge
probe_http_ssl 0
# HELP probe_http_status_code Response HTTP status code
# TYPE probe_http_status_code gauge
probe_http_status_code 200
# HELP probe_http_uncompressed_body_length Length of uncompressed response body
# TYPE probe_http_uncompressed_body_length gauge
probe_http_uncompressed_body_length 81
# HELP probe_http_version Returns the version of HTTP of the probe response
# TYPE probe_http_version gauge
probe_http_version 1.1
# HELP probe_ip_addr_hash Specifies the hash of IP address. It's useful to detect if the IP address changes.
# TYPE probe_ip_addr_hash gauge
probe_ip_addr_hash 3.6694721e+08
# HELP probe_ip_protocol Specifies whether probe ip protocol is IP4 or IP6
# TYPE probe_ip_protocol gauge
probe_ip_protocol 4
# HELP probe_success Displays whether or not the probe was a success
# TYPE probe_success gauge
probe_success 1

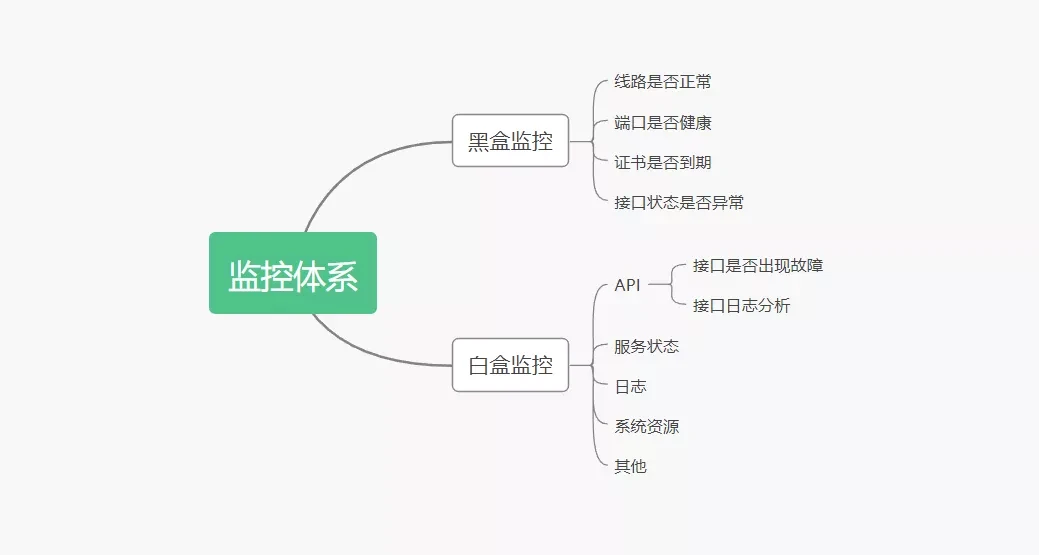

从返回的样本中，用户可以获取站点的DNS解析耗时、站点响应时间、HTTP响应状态码等等和站点访问质量相关的监控指标，从而帮助管理员主动的发现故障和问题。

追加到prometheus.yml

# 网站监控
  - job_name: 'http_status'
    metrics_path: /probe
    params:
      module: [http_2xx]
    static_configs:
      - targets:
        - http://192.168.xx.xx:3928/anywhere/#/before          #某网页
        - https://www.baidu.com
          instance: http_status
          group: web
    relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - source_labels: [__param_target]
        target_label: instance
      - target_label: __address__
        replacement: 192.168.188.68:9115

# ping 检测
  - job_name: 'ping_status'
    metrics_path: /probe
    params:
      module: [icmp]
    static_configs:
      - targets:
        - 192.168.188.200
        labels:
          instance: 'ping_status'
          group: icmp
    relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - source_labels: [__param_target]
        target_label: instance
      - target_label: __address__
        replacement: 192.168.188.68:9115

# 端口监控
  - job_name: 'port_status'
    metrics_path: /probe
    params:
      module: [tcp_connect]
    static_configs:
      - targets:
        - 192.168.188.10:3928
        - 192.168.188.22:3306
        - 192.168.188.200:8090
        labels:
          instance: 'port_status'
          group: port
    relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - source_labels: [__param_target]
        target_label: instance
      - target_label: __address__
        replacement: 192.168.188.68:xx
